The Lynwood W76 is a welcome addition for wood burners everywhere, and is what a wood stove should be: efficient, low emissions, and provides great flames with a maximum viewing area.

Versatile, the Lynwood W76 wood stove adapts to any room and will create a cozy atmosphere in any space.

EPA 2020 certified, the Lynwood W76 wood burning stove brings warmth without compromising on air quality.

Product Features

EPA Certified
78% Maximum Efficiency
Non Catalytic
Heats up 2000 ft2
Maximum Log Size – 21”
13,784 to 57,674 BTU/hr
Massive Glass for Fire Viewing

Product Information

Specifications & Dimensions

W-76
Type	Solid Fuel Room Heater
Type of Combustion	Non-catalytic
Fuel Type	Dry Cordwood (15% moisture)
Main Material	Cast Iron
Firebox Isolation	Vermiculite
Flue Exit	6” (150 mm) Back to top connector
Recommended Heating Area	450 to 2,000 ft.2 (42 to 185 m²)
Nominal Firebox Volume	1.55 ft.3 (0.044 m³)
Maximum Burn Time ¹	14 hours
Maximum Heat Output (dry cordwood) ²	57,700 BTU/h (16.91 kW)
Overall Heat Output Rate (min. to max.) ²³	13,784 BTU/h to 57,684 BTU/h (4.04 kW to 16.91 kW)
Average Overall Efficiency ³	71% (HHV) 4 76% (LHV) ⁵
Optimum Efficiency ⁵	78%
Average Particulate Emissions Rate ⁷	1.81 g/h (EPA/CSA B415.1-10)
Average CO⁵	120 g/h

Product Manuals

User Manual & Spec Sheet

Installation Manual

Spec Sheet

Brochure

Heat Shield Installation

Sierra Flame

Sierra Flame Abbot 30" Deluxe Direct Vent Insert with Ceramic Brick Panels & Log set

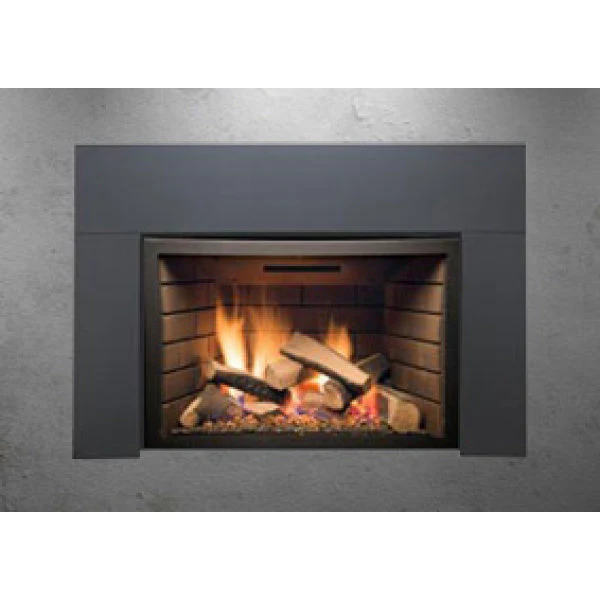

Sierra Flame Abbot 30" Deluxe Direct Vent Insert with Black Porcelain Panels
