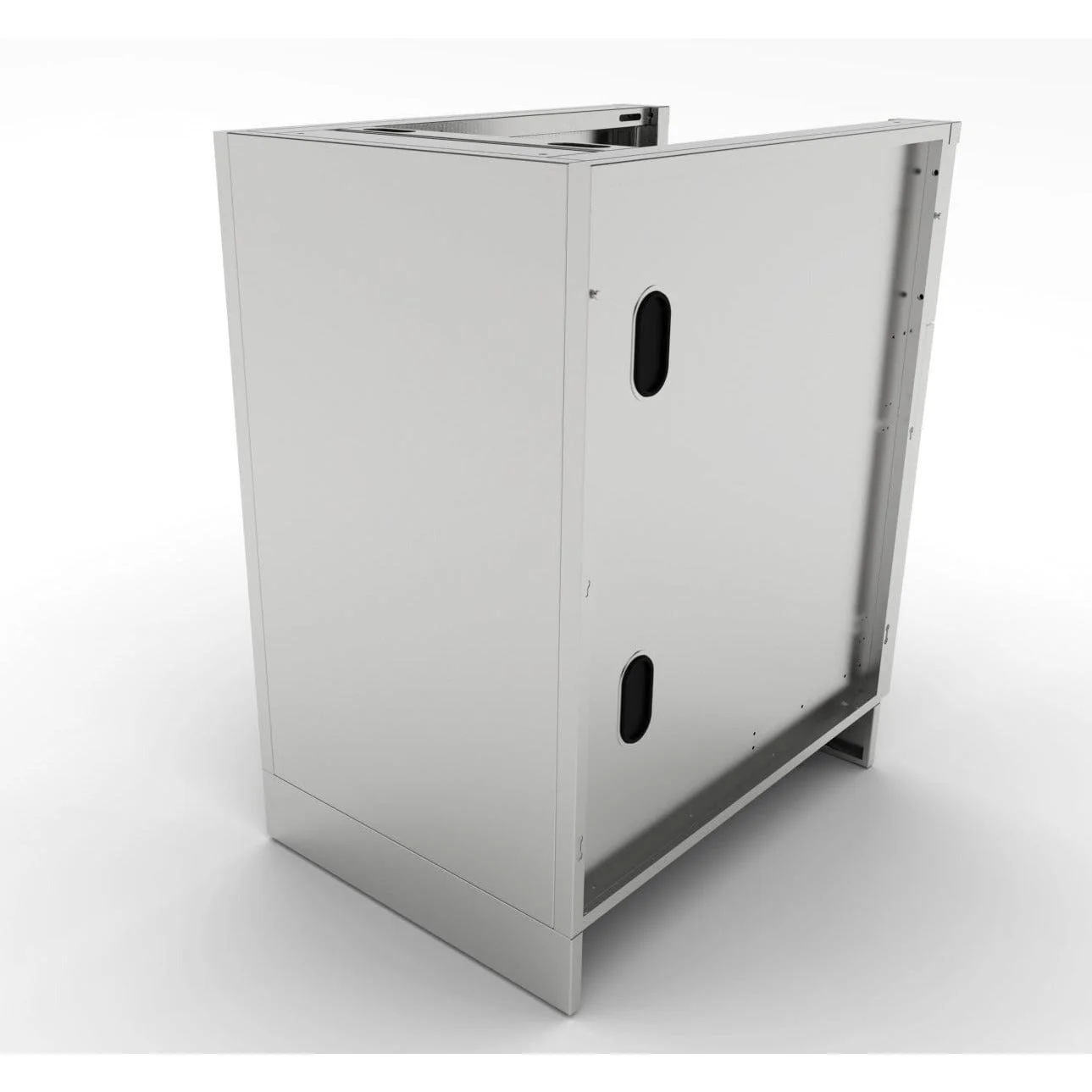

Sunstone 20" Appliance Base Cabinet with Left Swing
The Sunstone 20 In. Appliance Base Cabinet - Versatility Meets Convenience!
Revolutionize your outdoor kitchen with the Sunstone 20 In. Appliance Base Cabinet - a brilliantly designed cabinet that accommodates various types of double slide-in side burners or bar stations from different industry brand models. This cabinet offers easy installation, making it a breeze to incorporate your preferred appliances.
Standard with a left-swing side door enclosure, this cabinet provides storage space for a trash bin or propane tank. The bottom utility access port, conveniently located behind the slide-out tray, ensures effortless maintenance.
Delivered fully assembled, the cabinet only requires you to fasten the four included peg legs, screw in the 304 SS rod handles, and mount the front and back kick-plates. Adapting the cabinet to your preferred appliance is simple with the "TRIM-KIT" installed on the front face. The cabinet is compatible with "CUT-OUT" sizes between 9-3/4 In. to 14-1/2 In. width and 8 In. to 10-1/4 In. height, with a counter at 3/4" height with a filler rail installed or removed. Additional height adjustments can be made by removing the bottom filler rail or adding a thicker counter or backer board. Please specify the correct "TRIM-KIT" to be included with the cabinet, and if your side burner or bar station is one of our models, we'll automatically include the correct Trim-Kit.
Features
- Lifetime Structure Warranty
- 304 SS Rod Handles
- Rear Solid Kick-Plate
- Easy Pin-Lock Installation
- Covered Side Wall Access Ports
- Optional Wheel Casters
- 304 Stainless Steel Structure
- Front Vented Kick-Plate
- Replaceable Face Panel
- Removable Counter Rail
- 4 Adjustable Peg-Legs
Specifications
- With Legs: 20"W x 28-1/4"D x 34-1/2"H
- Without Legs: 20"W x 28-1/4"Dx 30-1/2"
- Max Adjustable Height: Up to 36"
- Net Weight: 71.5 Lbs
- Package Size: 23"W x 31" L x 33" H
- Package Weight: 81 Lbs
- Insertable Products:
- Double Side Burner -2CSB
- Cocktail Pro- B-CS14
- SAC20CSDL TRIM-KIT:
| Item Number | Sleeve Cut-Out | Product Option |
| SCC20CTK2.5 |
14-1/2" Width x 10-1/4" Height x 24-1/2" Maximum Depth |
Appliance Trim Kit |
| SCC20CTK3.25 | 13-1/2" Width x 10-1/4" Height x 24-1/2" Maximum Depth | Sunstone® Cocktail Station, Sunstone® Cocktail Pro, Alfresco® Double Burner |
| SCC20CTK3.75 |
12-3/8" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24-1/2" Maximum Depth |
Sunstone® Double Burner, Double Burners for - RCS®, Lynx®,DCS®, Alfresco®, Luxor®, Cal-Flame® Double Burner, Cal-Flame® Cocktail Center, Coyote® Double Burner |
| SCC20CTK4.5 | 11" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24-1/2" Maximum Depth | Steele® Side Burner |
| SCC20CTK5 | 9-3/4" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth | Appliance Trim Kit |
Disclaimer: The trademarks used in the “Product Option” belongs to the respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use your own discretion to confirm the exact product fit.
